13-15 C-Max fusion cmax Hybrid Battery 5.5Ah Battery Cell Module DG98-10C694-AF solar audio

13-15 C-Max fusion cmax Hybrid Battery 5.5Ah Battery Cell Module DG98-10C694-AF solar audio - BIGGSMOTORING.COM SALE
13-15 C-Max fusion cmax Hybrid Battery 5.5Ah Battery Cell Module DG98-10C694-AF solar audio - BIGGSMOTORING.COM 13-15 C-Max fusion cmax Hybrid Battery 5.5Ah Battery Cell Module DG98-10C694-AF solar audio - BIGGSMOTORING.COM 13-15 C-Max fusion cmax Hybrid Battery 5.5Ah Battery Cell Module DG98-10C694-AF solar audio - BIGGSMOTORING.COM 13-15 C-Max fusion cmax Hybrid Battery 5.5Ah Battery Cell Module DG98-10C694-AF solar audio - BIGGSMOTORING.COM 13-15 C-Max fusion cmax Hybrid Battery 5.5Ah Battery Cell Module DG98-10C694-AF solar audio - BIGGSMOTORING.COM 13-15 C-Max fusion cmax Hybrid Battery 5.5Ah Battery Cell Module DG98-10C694-AF solar audio - BIGGSMOTORING.COM 13-15 C-Max fusion cmax Hybrid Battery 5.5Ah Battery Cell Module DG98-10C694-AF solar audio - BIGGSMOTORING.COM 13-15 C-Max fusion cmax Hybrid Battery 5.5Ah Battery Cell Module DG98-10C694-AF solar audio - BIGGSMOTORING.COM 13-15 C-Max fusion cmax Hybrid Battery 5.5Ah Battery Cell Module DG98-10C694-AF solar audio - BIGGSMOTORING.COM 13-15 C-Max fusion cmax Hybrid Battery 5.5Ah Battery Cell Module DG98-10C694-AF solar audio - BIGGSMOTORING.COM 13-15 C-Max fusion cmax Hybrid Battery 5.5Ah Battery Cell Module DG98-10C694-AF solar audio - BIGGSMOTORING.COM 13-15 C-Max fusion cmax Hybrid Battery 5.5Ah Battery Cell Module DG98-10C694-AF solar audio - BIGGSMOTORING.COM

Ford

$299.99 $999.99
SKU: 184226328790
Availability: 33 in stock

← Previous Product Next Product →

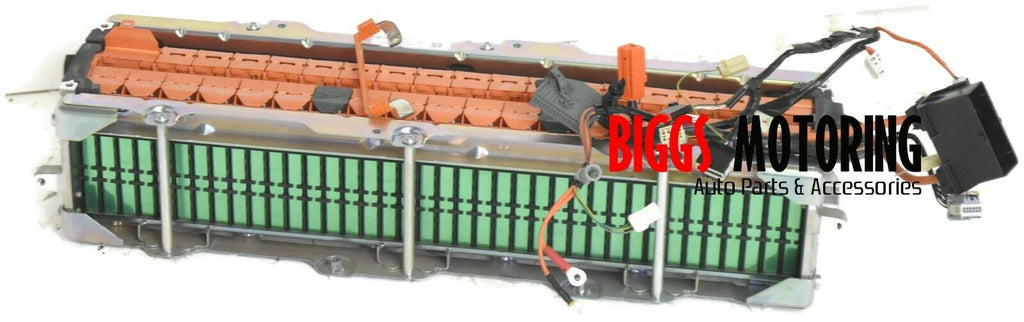

  • Factory Oem Used Hybrid Battery Cell Module
  • Item is In Good Working Order, Ready To Be Installed...
  • Item Will  Show Signs Of Normal Used Wear, Minor Scratches, Scrapes, & Scuffs Etc

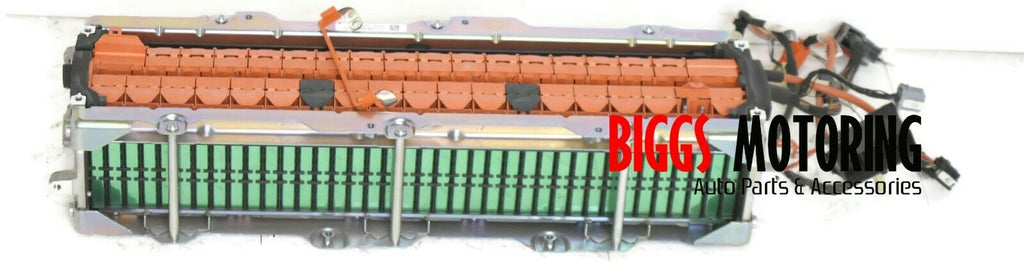

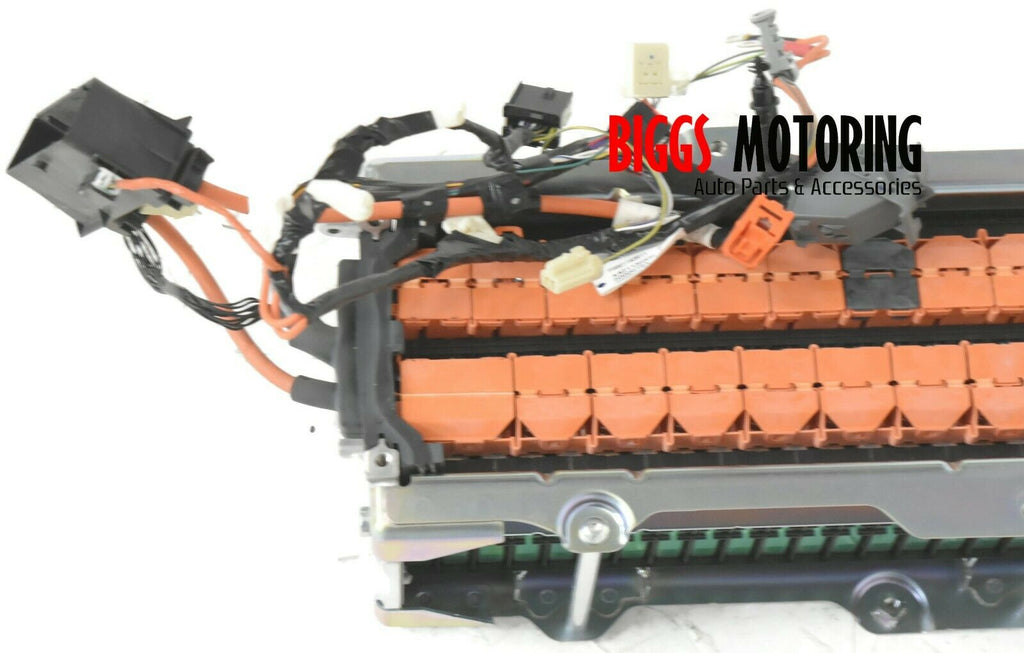

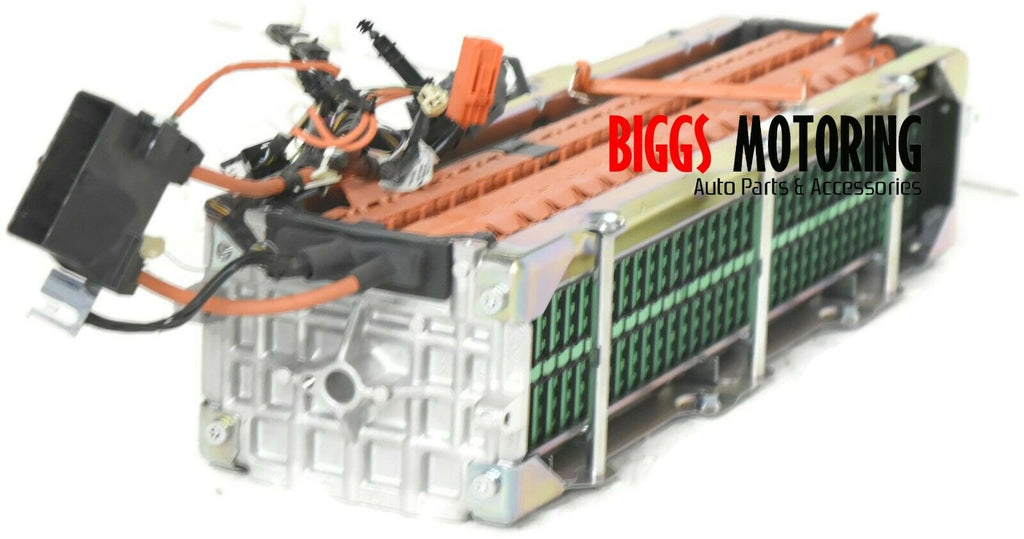

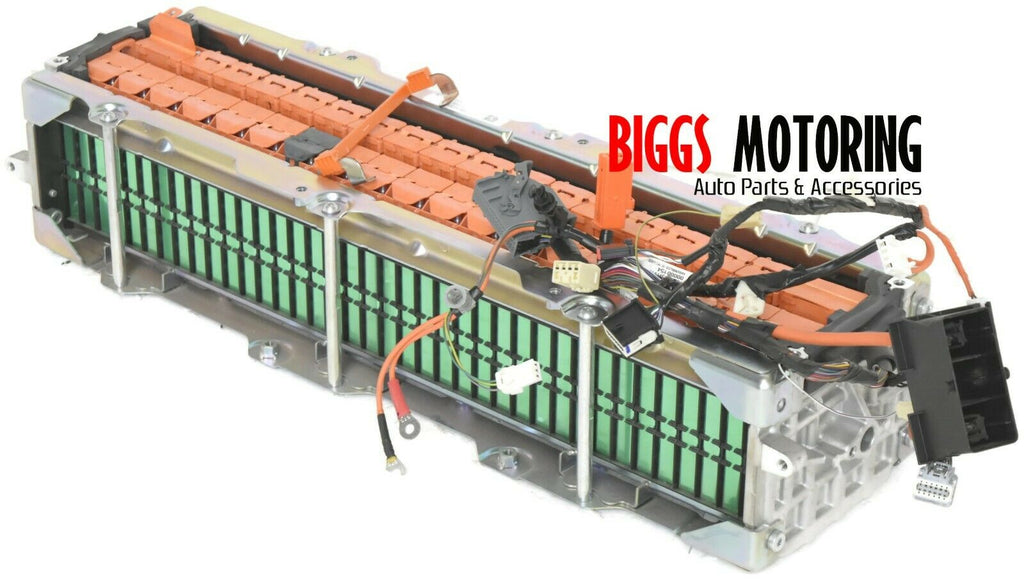

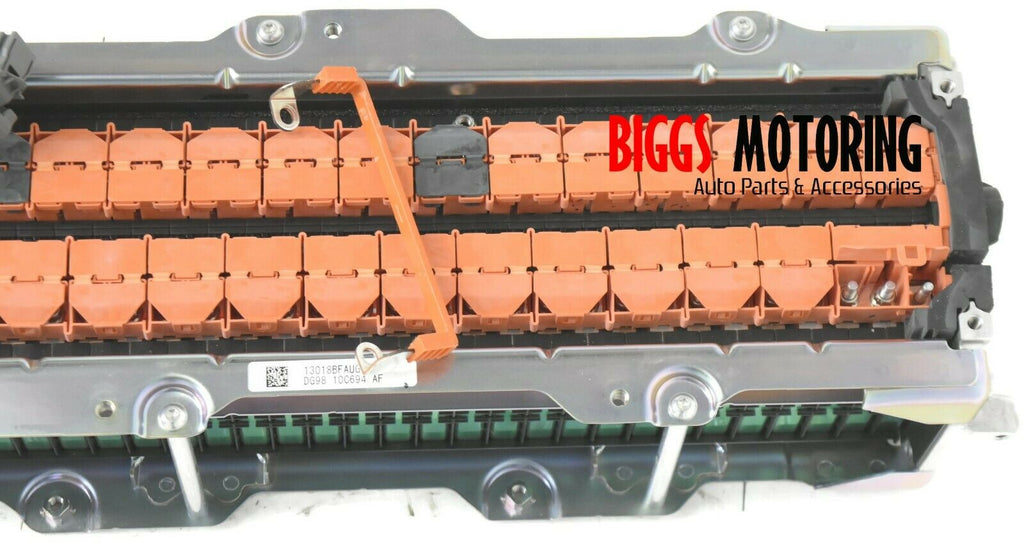

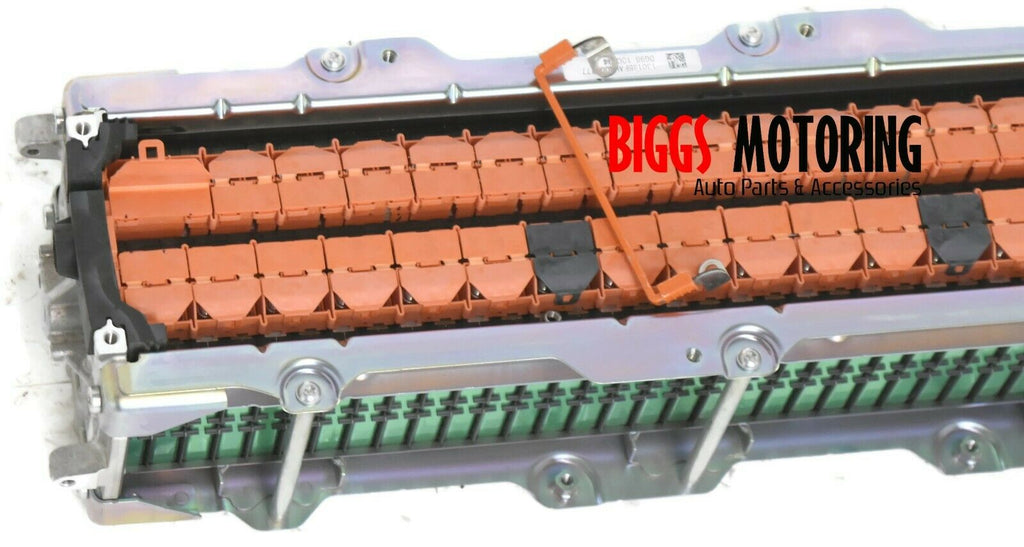

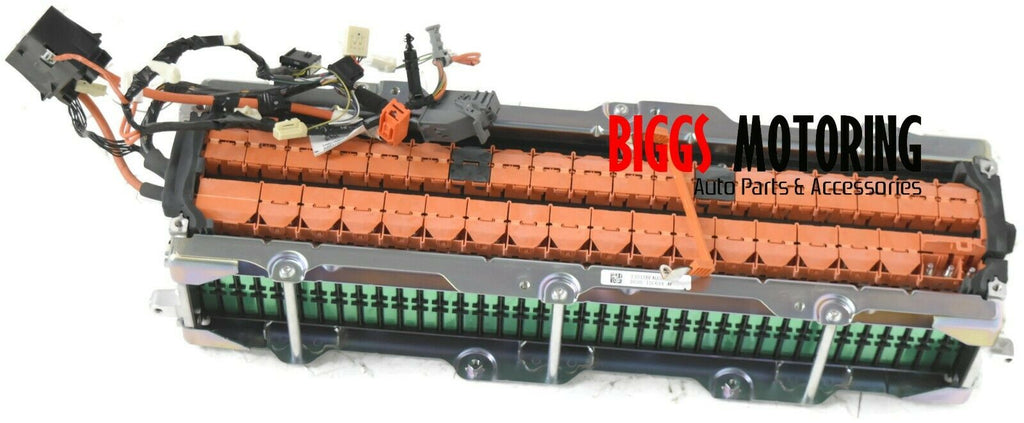

  • See Pictures For Better Details
  • Model: C-Max
  • Year: 2013-2015

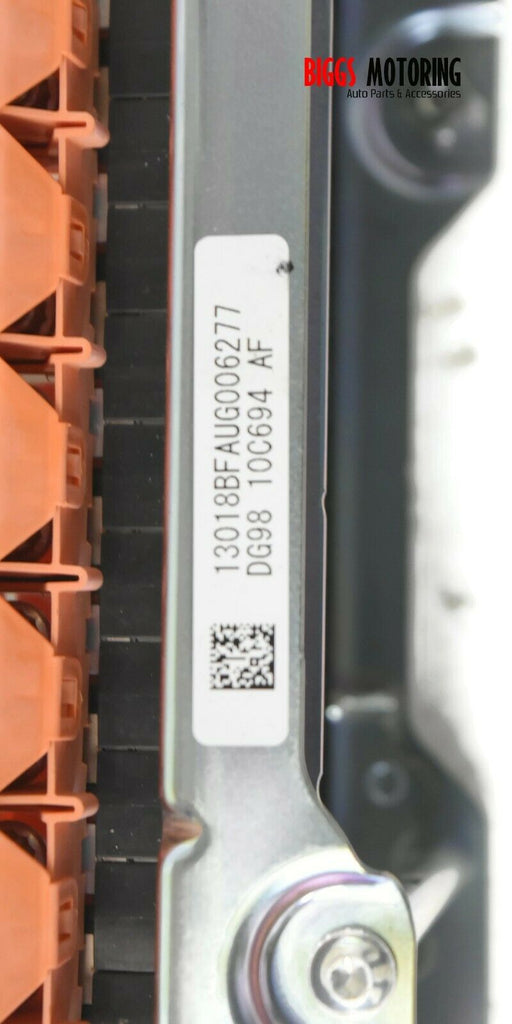

  • Part #: DG98-10C694-AF

MODULE SPECIFICATIONS

Number of cells 38
Construction 38 in-series
Length 25"
Width 7 1/2" (120mm)
Height 5 1/8" (85 mm)
Weight 33 lbs

CELL SPECIFICATIONS

Cathode material Lithium Ion Manganese Oxide, LiMn2O4
Anode material Hard Carbon
Average voltage 3.7VDC
Maximum Voltage 4.2VDC
Minimum Voltage 2.75VDC
Terminal Thread M5 0.8
Amp Hour 5.5 Ah
Peak current 150A
Continuous current 100A
Length 4 3/4" (120mm)
Width 1/2" (13mm)
Height without terminals 3 3/8" (85 mm)
Height with terminals 4 3/16" (106mm)
Weight 9 oz

 .
